What is the difference between a vapor barrier and full encapsulation?

A vapor barrier is a single layer of plastic laid over the dirt floor to slow ground moisture. Full encapsulation is a complete system: a heavy 20-mil reinforced liner sealed across the floor and up the foundation walls, sealed vents, insulated rim joists, and usually a dehumidifier or drainage to control the air. A bare vapor barrier helps a little; encapsulation is what actually keeps the space dry and the humidity stable year-round.

Do I really need to seal my vents? I was told crawl spaces need to breathe.

That was the standard advice decades ago, but modern building science has reversed it. In a humid Maryland climate, open vents pull warm, moisture-laden summer air into the cool crawl space, where it condenses on the framing and creates the exact dampness you are trying to avoid. Sealing the vents and conditioning the space is now the recommended approach and is reflected in current building practice.

How long does the installation take?

A typical crawl space encapsulation is a clean, two-day installation. Larger homes or projects that add interior drainage and a sump system may take an extra day. We give you an exact schedule in your written proposal so you know precisely what to expect.

Serving Ellicott City & Howard County

Ellicott City Crawl Space Encapsulation & Waterproofing

Q: How much does crawl space encapsulation cost in Ellicott City?

Most full encapsulation projects in Ellicott City run between $5,000 and $15,000. The final price depends on the square footage of your crawl space, the current moisture and mold levels, the thickness of vapor barrier specified, and whether interior drainage or a dehumidifier is included. You get one fixed, written price before any work begins, with no hourly surprises.

Protecting Howard County homes from high humidity, mold, and wood rot with commercial-grade vapor barriers and sealed systems.

Licensed & Insured
Local Howard County Crew
Lifetime Warranty Available
Zero Down Financing

Call (667) 446-3228 Get Free Estimate

Request Free In-Person Inspection

No obligation. Fixed-price proposal in writing.

Why Ellicott City Homes Are At Risk

Our soil and climate are hard on crawl spaces

Homes near the Patapsco River basin sit in some of the most humid air in central Maryland. That moisture collects in unsealed crawl spaces, where it has nowhere to go and slowly saturates framing and insulation.

Ellicott City's historic stone and block foundations were never designed to be air-tight, and the dense Howard County clay soil holds water against them after every storm. The result is a damp, mold-friendly environment directly beneath your living space.

Because the area sees roughly 44 inches of rain a year and long, sticky summers, an open crawl space rarely gets a chance to dry out. Once relative humidity climbs past 60%, wood-decay fungi and mold begin to grow, quietly weakening the same framing that holds up your floors.

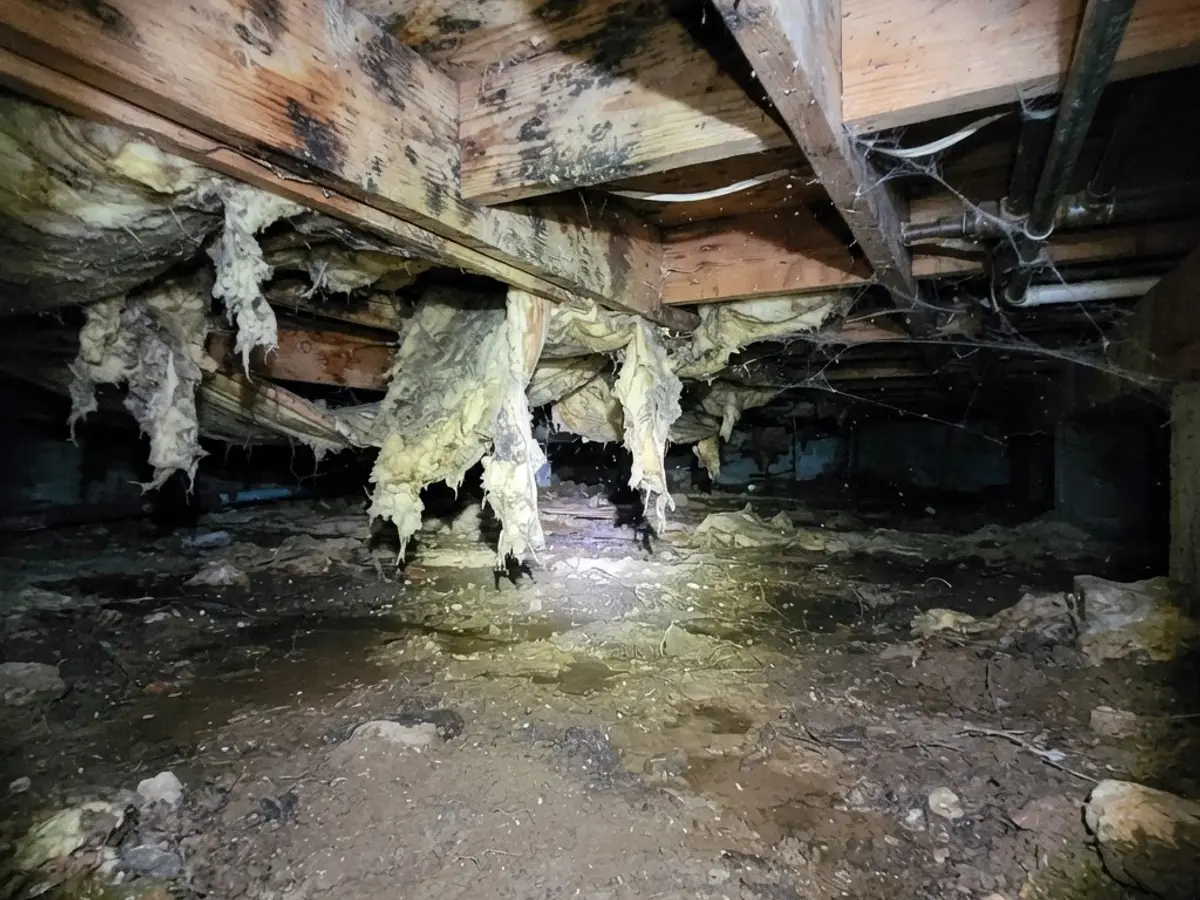

Damp dirt-floor crawl space with water-stained joists, mold growth, and sagging insulation — A typical untreated Howard County crawl space, damp earth, mold on the joists, and failing insulation.

Warning Signs

Musty odors drifting up into living areas
Sagging, bouncy, or uneven floors
Cold floors all winter long
High summer electric bills from humid air
Standing ground water under the home

Local Environmental Analysis

Why Ellicott City & Howard County crawl spaces suffer from chronic moisture

Moisture problems here aren't bad luck—they're the predictable result of our specific geology, river-valley climate, and aging foundation stock. Understanding the four forces below is the first step to permanently correcting them.

Piedmont Region Silt-Clay Loam

Howard County sits on the Piedmont plateau, where the native soil is a heavy silt-clay loam. Unlike the sandy coastal-plain soils to the east, this dense clay drains slowly and holds water against foundation walls long after a storm passes. Saturated soil exerts hydro-static pressure upward and inward, forcing ground moisture through porous masonry and up beneath crawl space vapor barriers rather than letting it percolate away.

Low permeability keeps water table high against footings
Hydro-static pressure pushes moisture under unsealed barriers
Clay expands when wet, stressing older foundation joints

Patapsco River Basin & Valley Microclimates

Homes along Main Street, Oella, and the riverbank corridor live inside a humid river-valley microclimate. From June through September, ambient outdoor humidity routinely holds above 75%. Traditional open foundation vents pull this hot, saturated air directly into the crawl space, where it meets cooler wooden subfloors and joists and condenses on contact—the classic "Stack Effect" that turns your vents into a moisture pump instead of a dryer.

Summer ambient humidity sustained above 75%
Open vents draw moist air onto cool framing
Stack Effect drives condensation on subfloors & joists

Local Foundation & Housing Stock

The county mixes very different construction eras. Old Ellicott City is full of historic fieldstone and granite-mortar foundations that breathe moisture through their joints by design. Meanwhile, 1970s–1990s homes in Columbia, Dunloggin, and Turf Valley typically sit on concrete cinder-block foundations whose hollow cores wick and store groundwater. Neither system was built to stay dry against today’s moisture loads.

Historic fieldstone & granite-mortar in Old Ellicott City
Cinder-block foundations in Columbia, Dunloggin, Turf Valley
Porous masonry cores wick and hold groundwater

Structural Signs Homeowners Notice

Chronic crawl space moisture rarely stays hidden. It surfaces as seasonal, tell-tale symptoms in the living space above—often mistaken for unrelated problems. If you recognize several of these together, the source is almost always unmanaged humidity coming up from below.

Hardwood floors that cup and crown every summer
Fungal rot and dark staining on floor joists
Musty, earthy smell in HVAC return air

System Specifications

The engineering behind a dry crawl space

Encapsulation is only as good as the components it is built from. Here is exactly what we install, the specifications we hold to, and why builder-grade shortcuts fail in Howard County soil and climate.

20-Mil Reinforced Vapor Barrier

vs. builder-grade 6-mil plastic

Standard 6-mil construction plastic is roughly the thickness of a sandwich bag. Dragged across Howard County’s rocky, shale-laced subsoil it punctures almost immediately, and every tear becomes an open channel for soil moisture and radon. Our 20-mil membrane is reinforced with a polyester cord scrim and treated with an antimicrobial additive, so it resists punctures, seals seams permanently, and isolates soil gases for the life of the home.

Thickness: 20 mil (3x+ builder-grade)
Reinforcement: 7-ply polyester cord scrim
Perm rating: < 0.0067 (Class I retarder)
Treatment: Antimicrobial, radon-rated
Warranty: 25-year transferable

Sealed vs. Traditional Vented

IRC Section R408.3 compliant

For decades code required open foundation vents, on the theory that outside air would dry the crawl space. In our humid Mid-Atlantic climate it does the opposite: warm summer air condenses on cool surfaces and pours moisture into the framing. Modern code (IRC R408.3) recognizes the unvented, conditioned crawl space — sealed vents, a continuous vapor barrier, and mechanical humidity control — as an approved assembly.

Approved by: IRC R408.3 (unvented)
Vent openings: Sealed & insulated
Air source: Conditioned, not outdoor
Humidity control: Mechanical (dehumidifier)
Insulation: Rim joist + perimeter walls

Commercial Dehumidification

sized for the space, not the shelf

Big-box portable dehumidifiers are built for a bedroom and run on plastic bushings. Asked to condition an entire crawl space they run at 100% duty cycle, overheat, and burn out inside a season. We size high-capacity Energy Star units — 70 to 100 pints/day — with steel components, a direct gravity drain line so there is no bucket to empty, and an onboard humidistat that holds a stable set point automatically.

Capacity: 70–100 pints / day
Efficiency: Energy Star rated
Drainage: Direct gravity drain line
Control: Automated humidistat
Target RH: ~55% year-round

Active Perimeter Drainage

dual-battery backup for storm season

Encapsulation stops water vapor; it does not move bulk groundwater. Where a hillside lot or a high water table pushes water in, we install an interior perimeter drain that channels it to a sump basin. Because Howard County storms bring both heavy runoff and grid flicker, the pump carries a dual-battery backup that keeps pumping through outages when it matters most.

Drain type: Interior perimeter channel
Primary pump: Cast-iron 1/3–1/2 HP
Backup: Dual-battery DC pump
Runtime: Rides through grid outages
Monitoring: High-water float alarm

Vented crawl space vs. sealed encapsulation

Vented

Sealed

Vapor barrier isolates soil gas & radon

Puncture resistance on rocky subsoil

Meets modern IRC R408.3 assembly

Controls summer condensation

Stable ~55% relative humidity

Protects framing & air quality long-term

Bulk groundwater managed with backup pump

The Building Science

Why a damp crawl space affects your whole house

Building scientists call it the stack effect: warm air rises and escapes through your upper floors, pulling replacement air up from the crawl space below. In an unsealed crawl space, that rising air carries moisture, mold spores, and odors into the rooms where your family spends its time. The crawl space isn't a separate zone, it's the first breath your home takes.

Structural Damage

Sustained humidity above 60% lets wood-decay fungi feed on your joists, sill plates, and subfloor. Over time, framing loses strength, floors sag and bounce, and repairs can climb into the tens of thousands, far beyond the cost of sealing the space early.

Indoor Air Quality

Because of the stack effect, up to half the air you breathe upstairs first passes through the crawl space. Mold spores, dust-mite allergens, and musty odors rise with it, worsening asthma and allergies for everyone in the home.

Energy Loss

Humid air is far harder for your HVAC system to cool than dry air. A damp crawl space forces your equipment to run longer, drives up summer electric bills, and leaves floors cold and drafty through the Maryland winter.

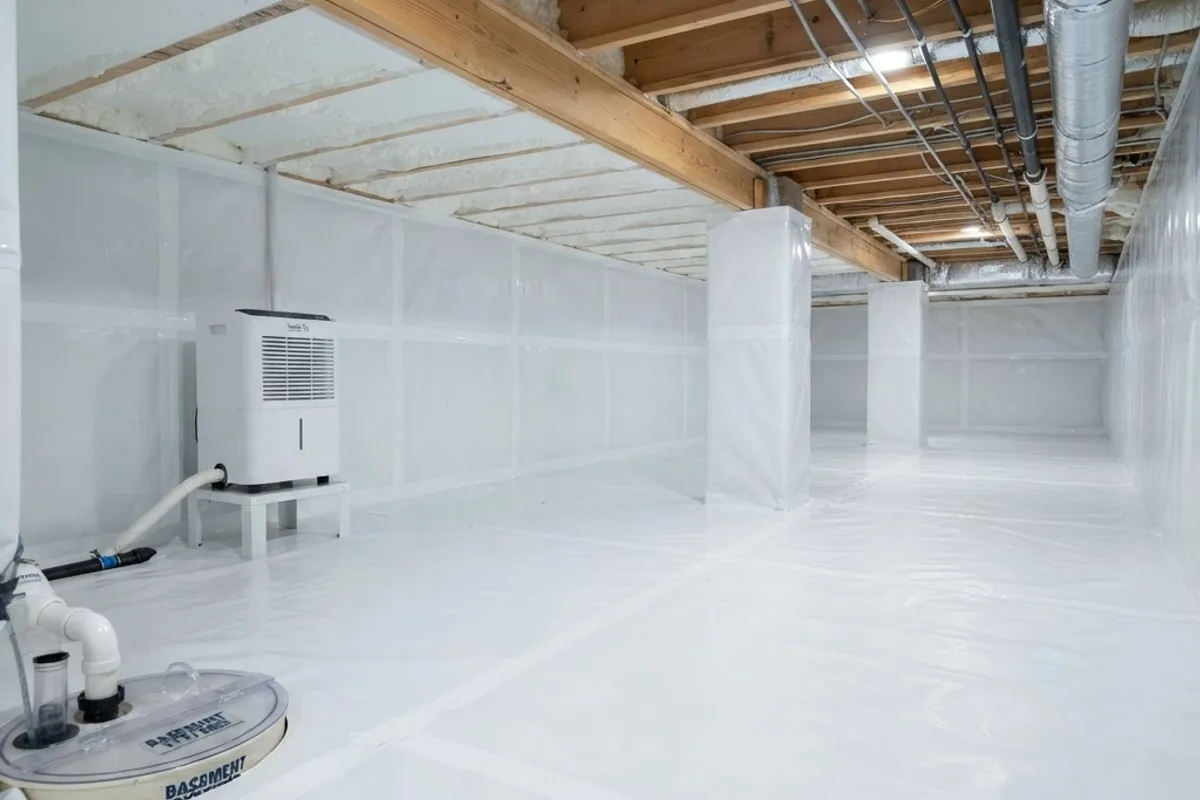

Professionally encapsulated crawl space with a sealed white vapor barrier, dehumidifier, and sump pump — The same space encapsulated, a sealed 20-mil vapor barrier, a dehumidifier, and a clean, dry environment.

Sealed out, not vented out

For decades, code required crawl space vents to let moisture “breathe out.” In our humid Maryland summers those vents do the opposite, pulling warm, wet outside air into a cool space where it condenses on every surface. Encapsulation flips the approach: seal the space from ground and outdoor moisture, then actively control what little humidity remains.

Vented vs. EncapsulatedOld VentedEncapsulated

Ground & humid air sealed out
Relative humidity held near 55%
Protects framing from wood rot
Lower heating & cooling bills
Warm, draft-free floors
Clean, usable storage space

How It Works

Three simple steps to a dry home

Step 1

Free On-Site Inspection

We measure moisture levels, check framing, and photograph problem areas so you see exactly what we see.

Step 2

Transparent Fixed-Price Proposal

Custom engineering for your crawl space with one clear, written price. No hourly surprises or upsells.

Step 3

2-Day Clean Installation

A tidy, on-schedule install finished with an air quality test to confirm your space is sealed and dry.

Where We Work

Howard County Neighborhood Hub

A hyper-local crew that knows these neighborhoods, soil, and permit offices inside and out. Coverage is grouped into three service zones across the county.

Ellicott City / Catonsville Border

Our home turf — historic stone foundations and dense tree cover that keep grade soil damp year-round.

Historic Downtown / Main StDunlogginNormandySt. Johns LaneOellaTurf Valley

Columbia & Clarksville

Planned-community cinder block foundations from the 1970s–90s, where sealed vents and dehumidification do the heavy lifting.

Town CenterWilde LakeHarper's ChoiceRiver HillClarksvilleDayton

West Howard / Rural Environs

Larger lots on private well and septic, where crawl space moisture frequently tracks along exposed utility and supply lines.

MarriottsvilleGlenwoodWoodstockWest Friendship

Same-day inspection dispatch across all Howard County routes including Route 40, Route 29, and I-70.

Questions & Answers

Frequently asked questions

Straight answers to what Ellicott City homeowners ask us most about encapsulation, cost, and moisture control.
